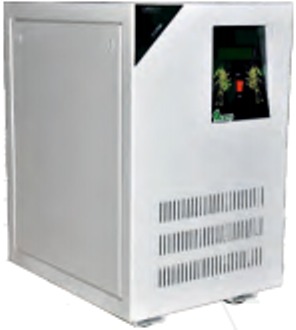

12V 192V DSP Sine Wave Static UPS

12V 192V DSP Sine Wave Static UPS
12V 192V DSP Sine Wave Static UPS
Product Code : LSUPS-12KVA192
Brand Name : LENTO
Product Description

Lento Industries Private Limited is one of the big company in top Indian Manufacturers, Suppliers and  Exporters of quality products in domestic as well as in international market.We are one of the biggest OEM manufacture in India, having world class manufacturing setups and In house R&D recognized by government of India, Which makes Lento one of the biggest manufacturer and exporter of Sine wave Inverters, UPS as well as Solar Photo Voltaic systems in India. Lento Industries Private Limited is emerging as the leading manufacturer, supplier and exporter in the countries like South Africa, Tanzania, Mozambique, Uganda, Kenya, Ethiopia, Yemen, Saudi Arabia, Iraq, Iran, UAE, Senegal, Nigeria, Ghana, Nepal, Bangladesh, Vietnam etc

 Product Description

 Static UPS/ Inverter / Industrial Inverter

Range: 2.5Kva 48v to 12kva 192v

Lento Industries Private Limited has designed the 12KVA 192V DSP sine-wave Static UPS based on the world's latest DSP technology. It is a reliable, efficient and highly cost effective solution. It portrays the robustness and the accuracy of the output as it delivers pure sine wave as its output. Lento Industries Private Limited has developed 12KVA 192V Industrial UPS as the best suited solution for Industries and Offices.

 TECHNICAL SPECIFICATIONS:

    Back Up Mode                       12KVA/192V

O/P Power Factor

0.8

No Load O/P Voltage

220V +/- 5V AC

Full Load O/P Current

38A +/- 0.5A

Max No Load Batt. Current

1.1A +/- 0.2A

THD(Total Harmonic Distortion)

3%

Low Batt. Indication

10.5V +/- 0.2V DC Per Batt.(12V DC Each Batt.)

Low Batt. Cut Off

10.3V +/- 0.2V DC Per Batt.(12V DC Each Batt.)



Mains Mode

Max Charging Current

10A +/- 1A

Full Load O/P Current

19.5A +/- 1A

Boost Charging Voltage

14.2V +/- 0.2V DC Per Batt(12V Each)

Float Charging Voltage

13.7V +/- 0.2V DC Per Batt(12V Each)



Normal Mode

I/P Voltage Range

100V to 280V AC +/- 10V AC

Change Over Time(Mains to Inverter)

<40 ms

Change Over Time(Inverter to Mains)

<25 ms



UPS Mode

I/P Voltage Range

180V to 260V AC +/- 5V AC

Change Over Time(Mains to Inverter)

<10 ms

Change Over Time(Inverter to Mains)

<10 ms

 Extra Features:

Protections

Output Not Ok, Battery Voltage Low(4 Auto Retries),Over Load(6 Auto Retries)Battery Over Charge, Over Temperature, Short Circuit, Mains MCB Tripped

Displays

Welcome Message, Capacity, Output Voltage, Output Frequency Load Percentage, Input Voltage and Frequency, Battery Charging, Battery Voltage and All Protection.

 Packaging & Shipping



Weight and Dimensions

Without Packaging L*W*H in mm

550*350*660

With Packaging L*W*H in mm

600*500*740

Net Weight

104 Kg

Gross Weight

115 Kg

 Load Chart:



Application

Load

3Kva

5Kva

7.5Kva

10Kva

12Kva

Petroleum Outlet

Fan

1

4

5

5

5

Tube Light

2

4

5

8

8

Petrol Filling Machine

1

2

3

4

5

Institute

Fan Only

30

50

75

100

110



Fan

18

35

55

70

75

Tube Light

15

20

35

40

50

Browsing Centre

A.C

0

1

1

2

2



Fan

5

4

8

8

10

Tube Light

5

4

8

8

10

Computer

5

2

6

6

6

Browsing Centre

Fan

5

10

12

20

25



Tube Light

5

10

12

20

25

Computer

5

8

12

15

20

Corporate Building

A.C

0

1

1

2

2



Fan

18

8

12

16

20

Tube Light

15

8

12

16

20
