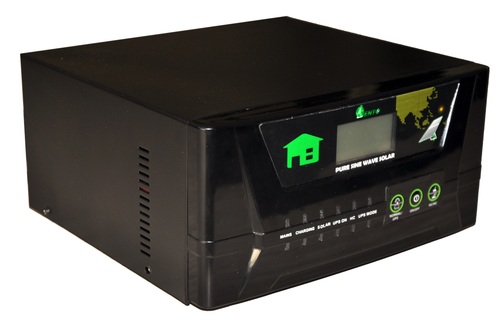

1450VA DSP Sine Wave Home Inverter

1450VA DSP Sine Wave Home Inverter
1450VA DSP Sine Wave Home Inverter
Product Code : LHI-1450VA
Brand Name : LENTO
Product Description

DSP Sine Wave Home Inverter

Range: 450 VA/12V to 2 KVA 24V

Lento Industries Private Limited's 1450VA DSP Sine wave Home Inverter is developed with advanced technology to provide Pure Sine Wave output. Lento Inverters / UPS deliver best of the power supplies if compared with ordinary UPS and inverter systems. UPS of other brands delivers distorted output particularly on normally encountered loads like Compact Fluorescent Lamp (CFL), Tube Lights, Motors, Coolers, Computers, etc. Distorted waveform is harmful for almost all the home application. Lento delivers quality output with reliable performance at a reasonable price.Emerging as the leading manufacturer, supplier and exporter in the countries like South Africa, Tanzania, Mozambique, Uganda, Kenya, Ethiopia, Yemen, Saudi Arabia, Iraq, Iran, UAE, Senegal,Nigeria, Ghana,Nepal,Bangladesh, Vietnam etc.

Our Domestic Series of Inverters like 1450 VA Pure Sine Wave Home Inverter series has become very popular among a number of customers. Our domestic inverters and UPS systems are designed for providing an even flow of power output for different home appliances.

SALIENT FEATURES:

  •      DSP Based Design with absolute and stable Sine Wave output voltage and frequency.
  •     State of the art MOSFET based PWM technology with greater efficiency at lower cost with Dynamic Stability
  •     Over Temperature Protection
  •     More back-up being a Sine Wave UPS (ASIC Control)
  •     No humming Noise (Silent UPS)
  •     Selector Switch for Normal / UPS
  •     Selector Switch for High Charging and Low Charging
  •     Intelligent Charger for Deep Discharged Battery.
  •     Advance Battery Management for longer battery life and prevent battery from overcharging.

APPLICATIONS:

  •     Power Back-up for House hold as well as the computer
  •     Small Water pumps and all motor based small applications
  •     TV Sets, Fans, Tube Lights, etc.

TECHNICAL SPECIFICATIONS*

                                                       Description                  1450VA/24V

Output Voltage at No Load

220V±5V AC

Output Current

5.27 A ± 0.5A

Output Frequency

50.0 Hz ± 1.0 Hz

Output Wave Form

Sine Wave

Nominal Battery Voltage

24V

Low Battery Cut Off

20.4V ± 0.2V

INVERTER MODE



Description

Change Over Time Inverter to Mains

Approx 20msec

Change Over Time Mains to Inverter

Approx 30msec

Input Voltage

100 VAC to 280 VAC ± 5 VAC

UPS MODE

Description

Change Over Time Inverter to Mains

<=8msec*

Change Over Time Mains to Inverter

<=8msec*

Input Voltage

180 VAC to 260 V ± 5 VAC

CHARGING MODE

Charger Current Normal Charging

12A +/- 2 A

Charger Current High Charging

14A +/- 2A



Displays

Mains ON, Battery Back-Up On

Short Circuit/Overload, Over Temperature

Battery Charging/Charged, Battery Low, Mains Fuse Blown



Protections

Wiring Fault, Battery Voltage Low(4 Auto Retries),Over Load(6 Auto Retries)

Battery Over Charge, Over Temperature, Short Circuit(1 Retry),Battery Deep Discharge Protection

Packaging & Shipping



WEIGHT & DIMENSIONS

Without Packaging B*L*H in mm

310*240*85

With Packaging B*L*H in mm

430*400*240

Net Weight

17.25 Kg

Gross Weight

18.6 Kg
